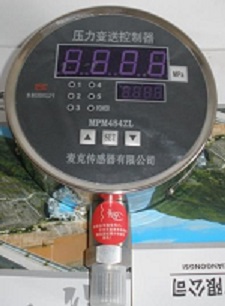

BP-800K pressure transmitting controller
Brand: Hengyuan
Model number: BP-800K
Specification: BP-800K
Scope of application: Pressure / differential pressure measurement
Measurement range: gauge pressure-0.1... 0~0.01... 100MPa
Overload pressure: 1.5 times full range pressure or 110MPa (take the minimum value)
Differential pressure measurement range: 0~35kPa...3.5MPa
Static pressure: 20MPa output signal: analog quantity 4 ~ 20 mADC, 010 / 20 mADC or 0 / 1~5VDC; digital quantity RS485
Accuracy: ± 0.1%FS; ± 0.25%FS; ± 0.5%FS
Zero-point temperature drift: ± 0.03%FS% ℃ (100 kPa) ± 0.02%FS% ℃ (> 100 kPa)
Full-degree temperature drift: ± 0.03%FS% ℃ (100 kPa) ± 0.02%FS% ℃ (> 100 kPa)
Long-term stability: ± 0.5%FS / y
Number of relay contact control: 1~5 points
Load capacity: 240V / 3A (AC) or 30V / 5A (DC)
Contact life:> 100,000 times
Power supply: 220VAC ± 15% or 220VDC or 24VDC
Larger power consumption: 3.5W
