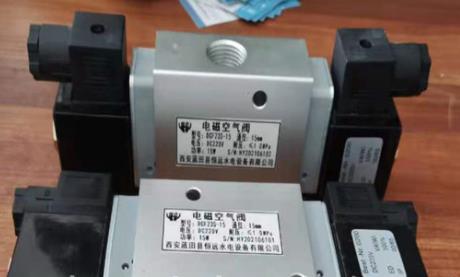

Solenoid valve DCF23S-DC48V
Specification model: DCF23-15 * DCF23
Nominal communication diameter (DN): 10 / 15 / 20
Nominal pressure (PN): 1
Application scope: Electric Power equipment
Valve body material: stainless steel
Connection form: thread
Mode of action: DCF23
Pressure environment: DCF23-15
Brand: Hengyuan
Valve standard: German standard
Applicable medium: all kinds of highly corrosive chemical media
Valve function: exhaust gas
Drive mode: electric mode
Type (channel location): the three-way type
Function function: fast type
Lining material: copper alloy
Sealing material: carbide carbide
Application fields: Petrochemical industry
Temperature environment: high temperature
Available accessories: coil
Flow direction: a two-way direction
Applindustry: Electricity
1) Using the pilot valve operation, the coil is low in power consumption, the valve body is small, the starting pressure is less than 2bar, the moisture-proof coil, can be energized for a long time;
2) Stainless steel valve core and engineering plastic coordination, well sealed, anti-fouling and rust resistance ability, will not be issued;
3) With manual operation.
1). Control mode: monostable state and bistable state;
2) Working mode; two positions and three links;
3) Applicable medium: air;
4) Working pressure: 0.3~1.0MPa;
5) Diameter: Φ 8mm, Φ 10mm, Φ 15mm;
6) Connection diameter: G1 / 4 ", G3 / 8, G1 / 2"; (standard sleeve joint);
7) Operating Voltage: DC220V, AC220V, DC24V, DC48V.
