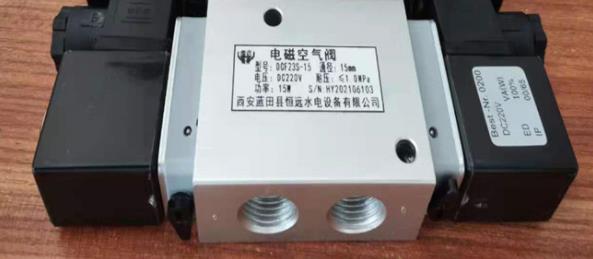

DCF23 solenoid air valve
Valve standard; German standard
Scope of application; space space
Nominal communication diameter (DN); 10,15,20....
Connection form; thread
Suitable media; others
Nominal pressure (PN); 1
Valve action; regulating
Mode of action; DCF23S DCF23D
Drive mode; Electromagnetic
Pressure environment; DCF23S DCF23D
Type (channel location); straight-through type
Specification and model number; DCF23S DCF23D * DCF23S DCF23D
Functional function; air type
Lining material; copper alloy
Sealing material; ented carbide
Application fields; Petrochemical industry
Temperature environment; room temperature
Accessble accessories; coil
Flow direction; two-way direction
Suitable for the industry; electricity
Valve body material; alloy steel
technical parameter
1). Control mode: monostable state and bistable state;
2) Working mode; two positions and three links;
3) Suitable media: air;
4) Working pressure: 0.3~1.0MPa;
5) Diameter: Φ 8mm, Φ 10mm, Φ 15mm;
6) Connection diameter: G1 / 4 ", G3 / 8, G1 / 2"; (standard sleeve joint);
7) Operating voltage: DC220V, AC220V, DC24V.
