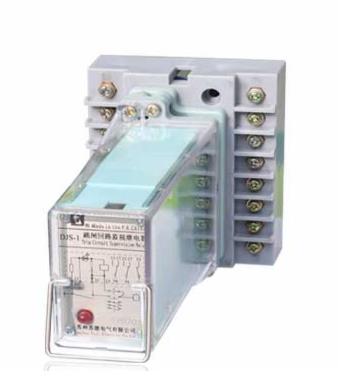

DJS-1 trip circuit monitoring relay
Product characteristics
The DJS-1 trip circuit monitoring relay can continuously monitor the trip circuit in the circuit breaker and alarm to the following conditions:
1. The DC power supply disappears;
2. The trip coil and its lead line fail;
3. Failure of the circuit breaker auxiliary contact;
4. Monitor the fault of the relay itself
| Rated voltage | contact form | contact rating | Delay Time |
| DC 220V | Secondary transfer contact | DC220V 0.1A (pf=0.4 L/R=5ms) | ≥0 |
| 110V | And a pair of action breaking contacts | AC220V 3A |
